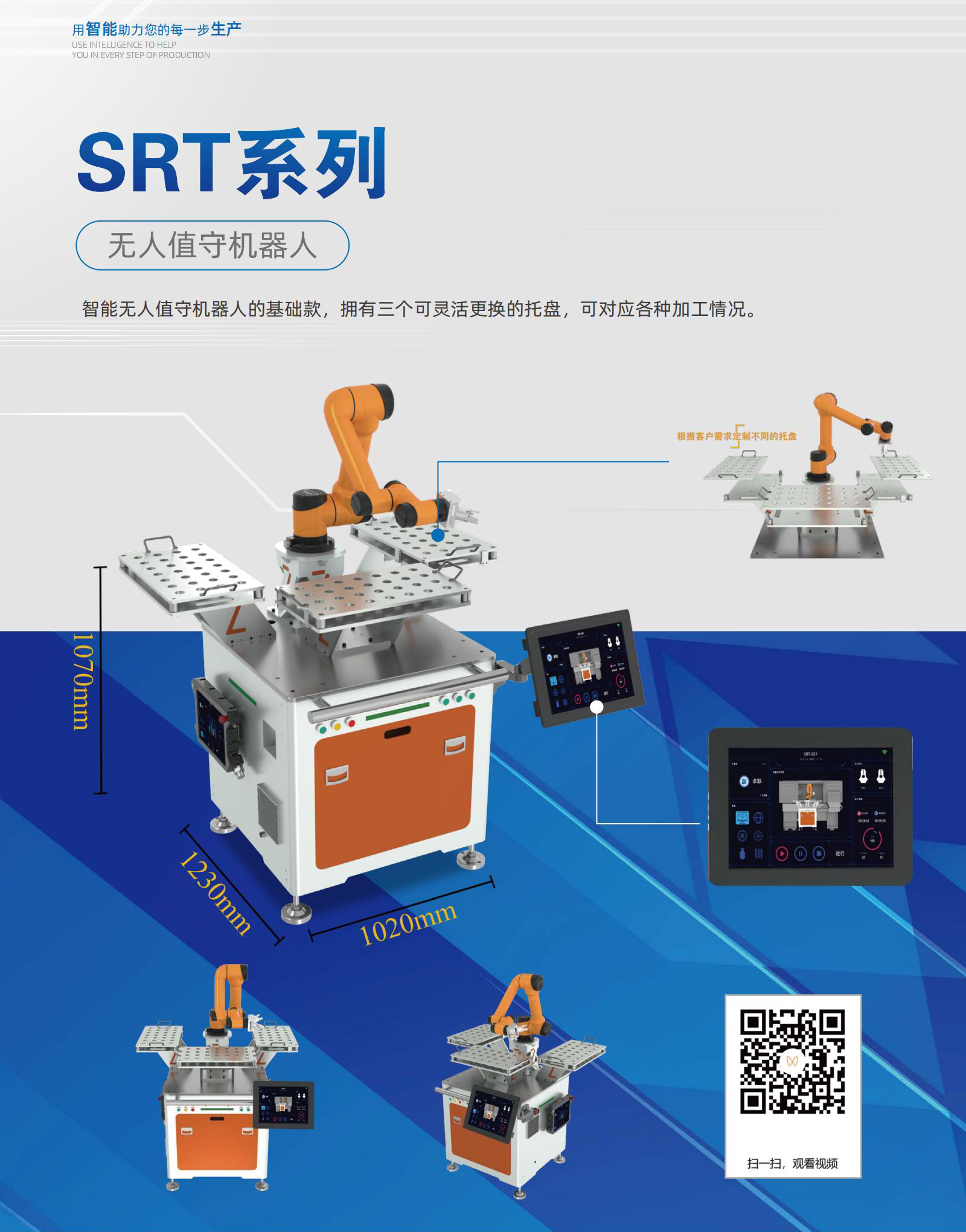

SRT Series
The basic model is suitable for loading and unloading, flexible assembly, inspection, palletizing, welding and other scenarios; it occupies a small space, is widely used, has low investment and is more stable.
Request a QuotationTechnical Parameter
-
-
- Name Parameter
- Equipment Series SRT
- Maximum Load Of Robot Arm 10kg (Including Tool End)
- Repeat Positioning Accuracy ±0.03mm
- Robot Maximum Working Radius 1350mm
- Range Of Movement 360
- Tool End Maximum Speed ≤4m/s
- Operating Temperature Range 0~50℃
- Workpiece Diameter ≤60mm
- Number Of Workpieces That Can Be Accommodated On A Single Tray ≤28 Pieces
- Weight Of Single Workpiece/KG ≤6kg
- Artifact Container Type Fixed Single Tray
- Number Of Trays 1-3
- Weight Of End Tool About 3.6KG
- Standard End A Set
-
Product Details
