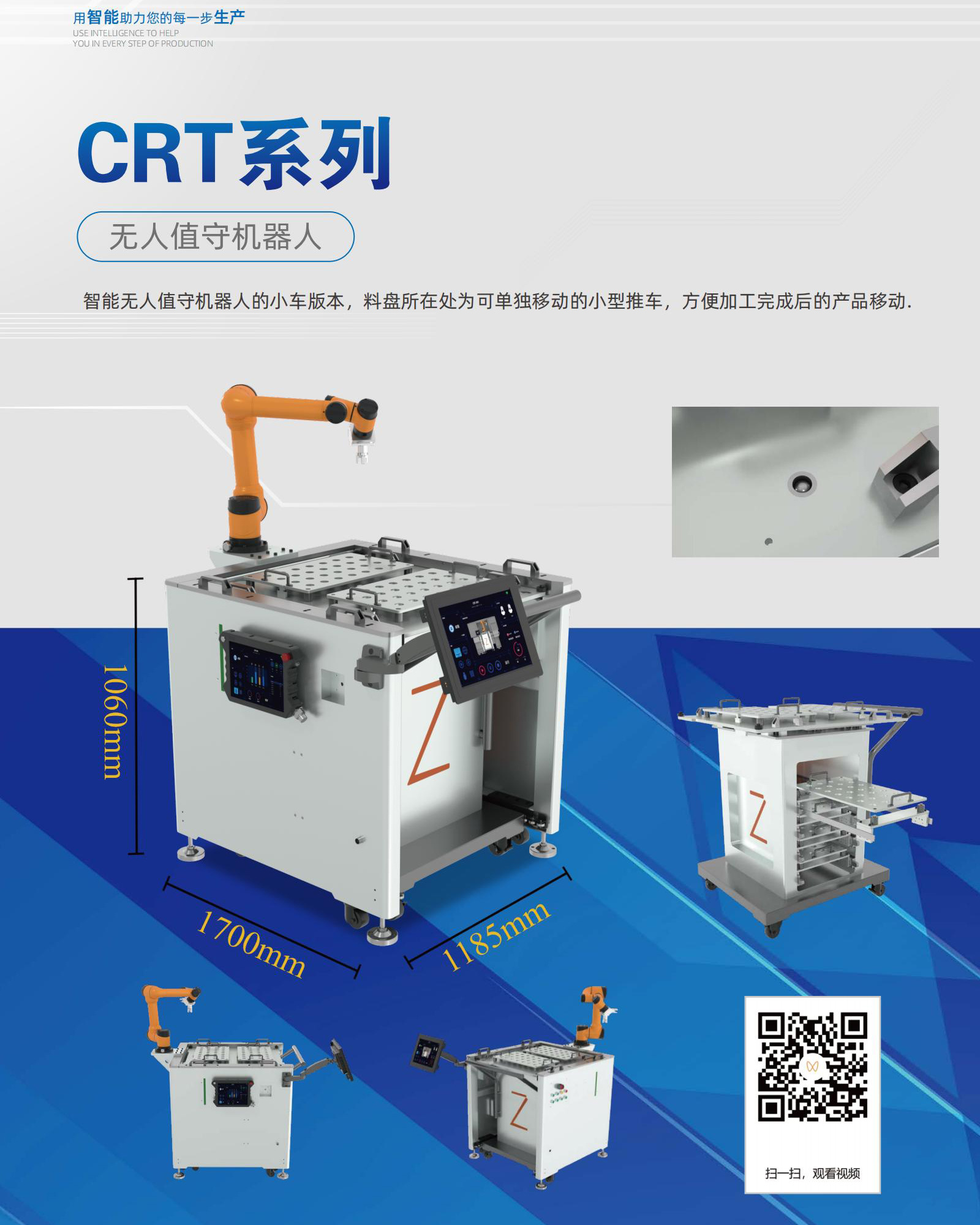

CRT Series
The small car model is suitable for large parts, multi-process loading and unloading processing, flexible assembly, inspection, welding and other scenarios; it saves time and effort and is safer.
Request a QuotationTechnical Parameter
-
-
- Name Parameter
- Equipment Series CRT
- Maximum Load Of Robot Arm 10kg (Including Tool End)
- Repeat Positioning Accuracy ±0.02mm
- Robot Maximum Working Radius 1350mm
- Range Of Movement 360
- Tool End Maximum Speed ≤4m/s
- Operating Temperature Range 0~50℃
- Workpiece Diameter ≤60mm
- Number Of Workpieces That Can Be Accommodated On A Single Tray ≤28 Pieces
- Weight Of Single Workpiece/KG ≤6kg
- Artifact Container Type Mobile Double Tray
- Number Of Trays 1-2
- Weight Of End Tool About 3.6KG
- Standard End A Set
-
Product Details
