MRT Series

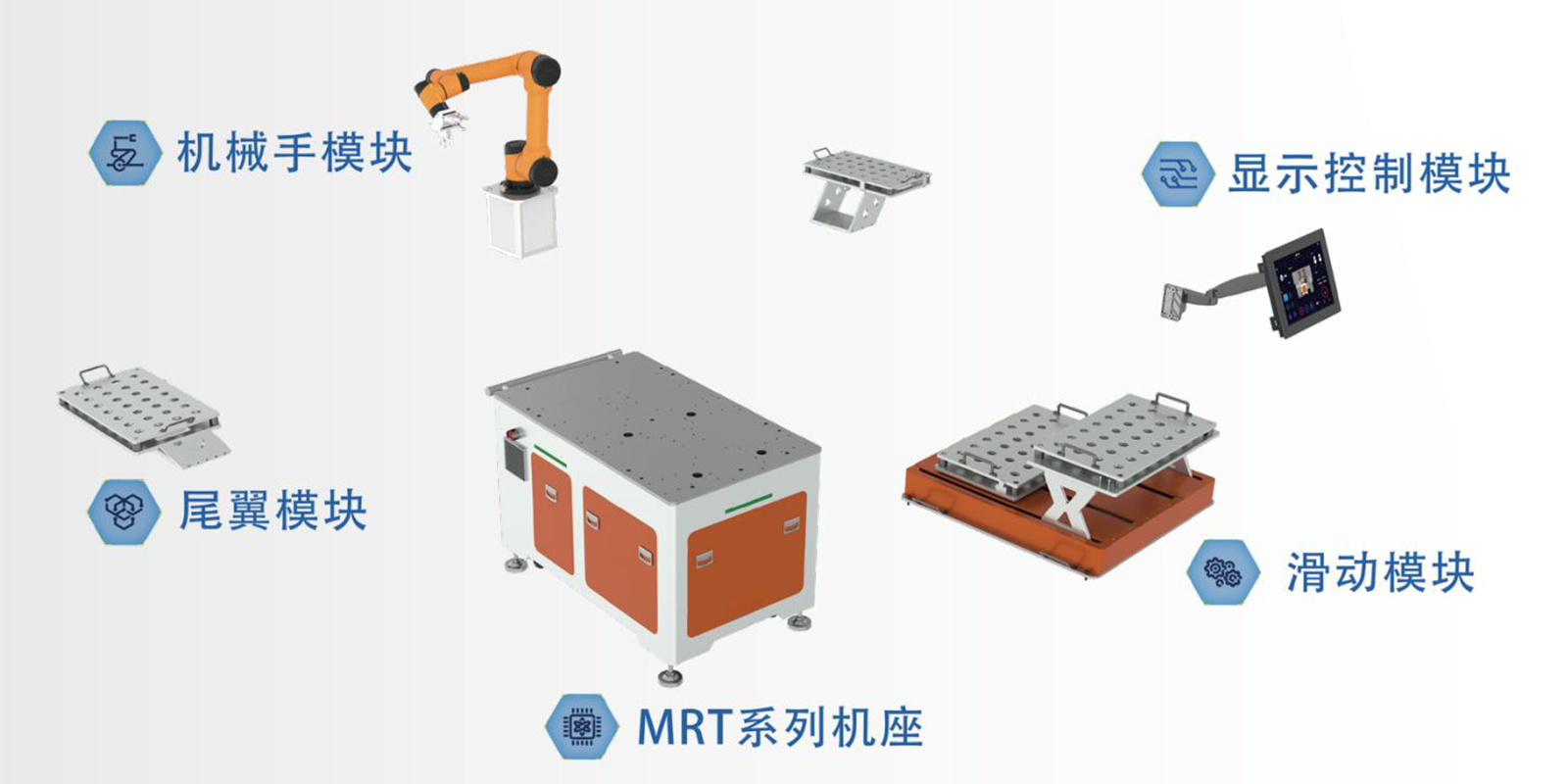

The multifunctional model can be used in conjunction with various modules to realize loading and unloading, flexible assembly, inspection, stacking, welding, etc. of various parts. It has a variety of functions to meet the different production needs of customers.
Request a QuotationTechnical Parameter
-
-
- Name Parameter
- Equipment Series MRT
- Maximum Load Of Robot Arm 10kg (Including Tool End)
- Repeat Positioning Accuracy ±0.03mm
- Robot Maximum Working Radius 1350mm
- Range Of Movement 360
- Tool End Maximum Speed ≤4m/s
- Operating Temperature Range 0~50℃
- Workpiece Diameter ≤60mm
- Number Of Workpieces That Can Be Accommodated On A Single Tray ≤28 Pieces
- Weight Of Single Workpiece/KG ≤6kg
- Artifact Container Type Mobile Double Tray
- Number Of Trays 1-2
- Weight Of End Tool About 3.6KG
- Standard End A Set
-
